How to connect a fiber optic patch panel directly

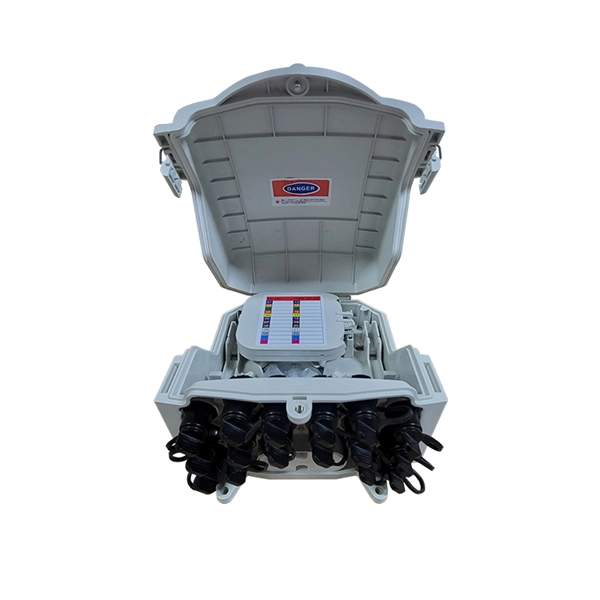

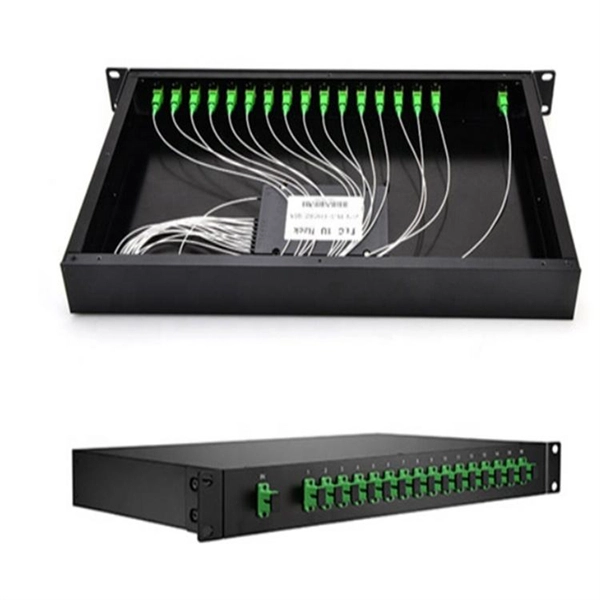

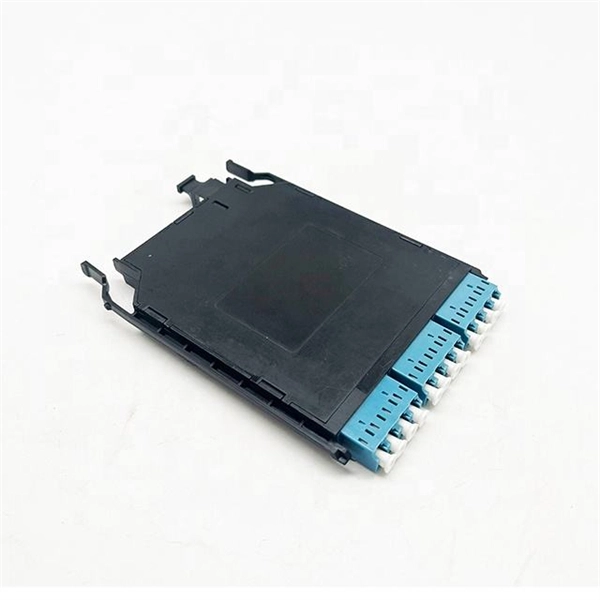

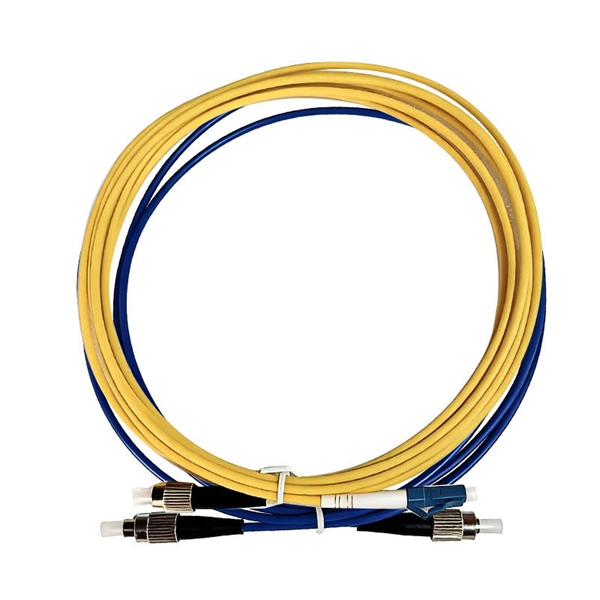

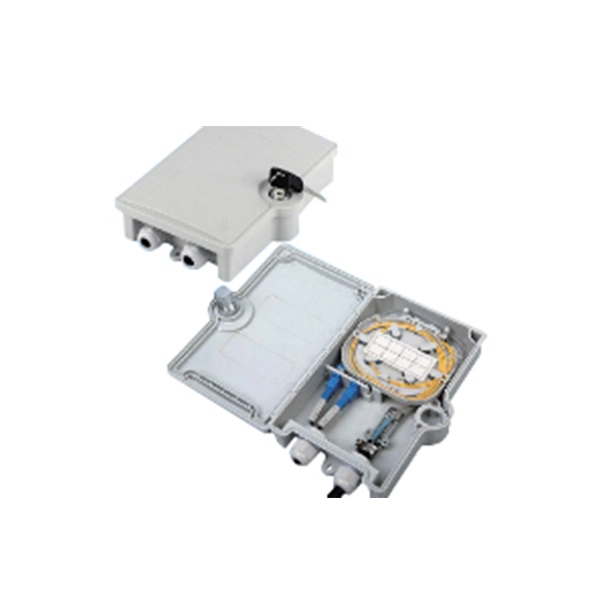

Connecting a fiber optic patch panel involves planning, mounting, terminating fibers, and organizing cables to ensure reliable network performance.Step 1: Planning and PreparationBefore installation, determine the type of patch panel (rack-mount, wall-mount, or DIN-mount) based on your location and network needs, as well as the fiber mode (singlemode or multimode) and strand count of your bulk fiber cable ( ). Gather necessary tools such as a fiber enclosure, patch panel, screws, cable ties, and labeling materials. Labeling ports and cables in advance simplifies future maintenance ( ).Step 2: Mounting the Patch PanelRack-mount panels: Install in a standard 19-inch or 23-inch rack, securing with screws. Ensure the panel occupies the correct number of rack units (RU) for your fiber count ( ).Wall-mount panels: Secure directly to the wall using appropriate anchors and screws, ensuring easy access for cable routing ( ).Step 3: Preparing Fiber CablesStrip the outer jacket of the bulk fiber cable carefully to expose individual strands.Organize fibers into manageable bundles, typically in groups of 12 strands for high-density cables ( ).Use protective tubing or sleeves to prevent fiber damage during handling ( ).Step 4: Terminating FibersSplice trays: Place fibers into splice trays if splicing is required. Connect pigtails to the adapter panel using fusion or mechanical splicing ( ).Connector adapters: Insert fiber connectors (LC, SC, ST, or MTP/MPO) into the adapter ports on the front panel ( ). Ensure proper alignment to avoid signal loss.Route fibers neatly from the splice tray to the adapter panel, maintaining bend radius limits to prevent damage ( ).Step 5: Cable ManagementUse cable management trays, grommets, or ties to organize patch cables and prevent tangling ( ).Ensure fibers are not under tension and maintain proper bend radius throughout the panel.Label each port and cable clearly for easy identification and troubleshooting ( ).Step 6: Testing and VerificationAfter connecting, test each fiber link for continuity and signal integrity using an optical power meter or OTDR.Verify that all connections are secure and that the network operates at the expected speed and performance ( ).By following these steps—planning, mounting, terminating, managing, and testing—you can ensure a reliable and organized fiber optic patch panel setup that supports efficient network operation and future scalability ( ).
