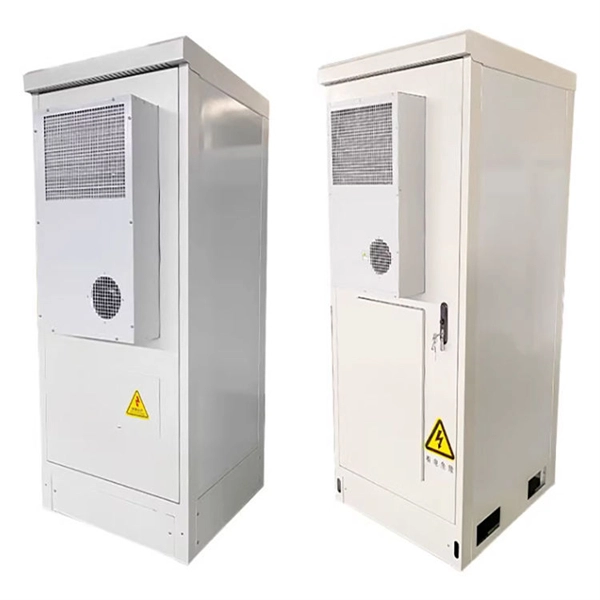

Cable routing in fiber optic distribution cabinets

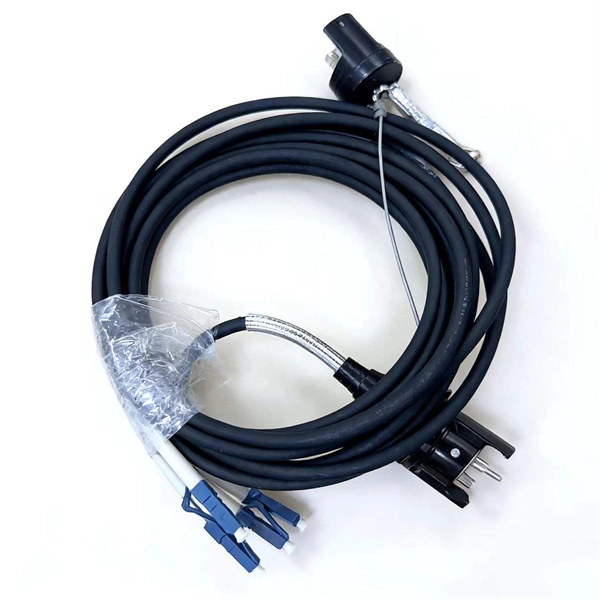

Proper cable routing in fiber optic distribution cabinets ensures minimal signal loss, organized management, and long-term network reliability.Key Principles of Cable RoutingMaintain Minimum Bend Radius: Fiber optic cables are sensitive to bending. Avoid sharp bends or twists, as these can cause microbends or macrobends, leading to signal attenuation and potential fiber damage. Use designated routing paths and cable guides to maintain the manufacturer-specified minimum bend radius inside the cabinet . Organize Slack and Loops: Provide sufficient slack for future maintenance, splicing, or reconfiguration. Typically, store buffer tubes or ribbon slack in loops of 3 meters for modules and 1 meter for pigtails. Use horizontal and vertical cable managers to neatly route slack without tangling . Use Cable Management Hardware: Employ horizontal finger-style managers with front covers for fiber jumpers and D-ring or vertical managers for larger distribution cables. This prevents pileup, entanglement, and stress on connectors, while facilitating easy access to ports and transceivers . Segregate Cable Types: Keep distribution cables, interconnects, and jumpers separated to reduce congestion and simplify troubleshooting. Use color-coded or labeled pathways to identify different cable types and destinations . Transition from Pathways to Cabinets: When routing cables from overhead or underfloor pathways into the cabinet, use appropriately sized spill-outs or entry guides. This ensures smooth transitions, maintains bend radius, and prevents fiber damage during installation . Accessibility and Maintenance: Arrange cables to allow easy access to all components. Avoid blocking other equipment or creating tight spaces that hinder future additions or removals. Proper routing facilitates quick identification and replacement of specific fibers .Best Practices SummaryPlan cabinet layout and routing paths before installation to minimize future errors .Use modular systems with integrated routing paths to reduce jumper inventory and simplify expansion .Avoid excessive twisting or pulling on pre-terminated cables during installation .Ensure outdoor cabinets are mounted securely and protected from environmental stress, while maintaining organized internal routing . By following these practices, fiber optic distribution cabinets can maintain low optical loss, organized cable management, and long-term network reliability, supporting both current and future network expansions.
