How to connect the cables to a PLC plug-in type optical splitter

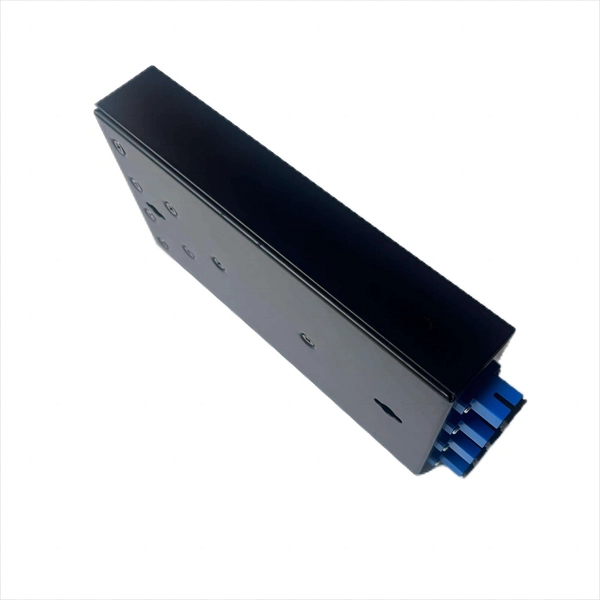

To connect cables to a PLC plug-in type optical splitter, ensure proper cable preparation, correct terminal connections, grounding, and signal integrity to maintain reliable optical communication.Preparation and SafetyBefore starting, power down the PLC and any connected devices to prevent electrical hazards or damage to the optical splitter and PLC modules . Only qualified personnel should perform the installation, following manufacturer safety instructions . Inspect all cables and connectors for damage and ensure the splitter is compatible with the PLC module.Cable PreparationStrip the cable ends carefully to expose the optical fibers or conductors without nicking or damaging them .Use ferrules or crimped connectors for terminal block connections to ensure a secure and reliable connection .Label each cable with shrink tubing or tape to identify the input/output channels and maintain clarity for troubleshooting .Connecting to the Optical SplitterIdentify the splitter ports: Typically, plug-in optical splitters have clearly marked input and output ports.Insert the prepared fiber or cable into the corresponding port, ensuring it is fully seated and aligned with the optical interface .Secure the connection using the locking mechanism or screws provided on the splitter to prevent accidental disconnection.Maintain proper bend radius for optical fibers to avoid signal loss or damage.Grounding and ShieldingConnect the earth terminals of the PLC and splitter together and to the operational earth to prevent electrical noise .Use shielded cables if the optical splitter is near high-voltage or high-current wiring, grounding the shield at the PLC end only .Separate power and signal cables to minimize interference and maintain signal integrity .Final ChecksVerify that all connections are secure and correctly labeled.Ensure that the cables are routed neatly, avoiding sharp bends or stress points.Power on the PLC and test the optical splitter communication to confirm proper operation. By following these steps, you can safely and effectively connect cables to a PLC plug-in type optical splitter, ensuring reliable signal transmission and long-term system stability .
