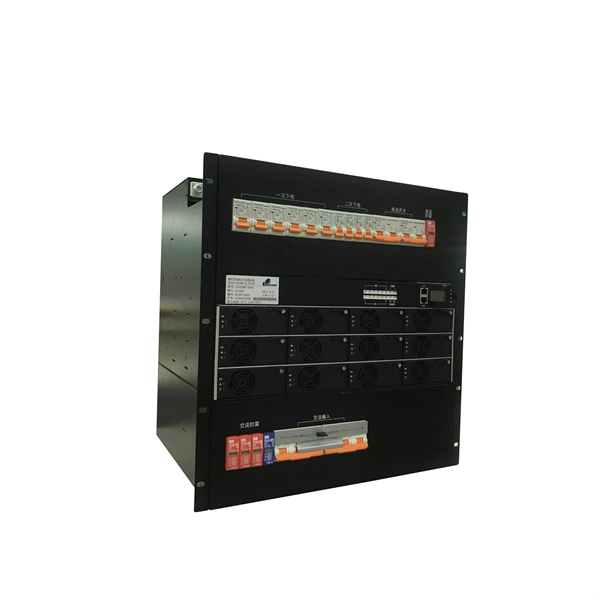

How to install the electrical distribution box inside the cabinet

Install the distribution box in a dry, ventilated, and accessible location inside the cabinet, ensuring proper grounding, secure mounting, and compliant wiring.Preparation and SafetyPower Off: Ensure the main power supply is completely turned off and verify with a multimeter or non-contact voltage tester to confirm zero voltage before starting any work ( ).Personal Protection: Wear insulating gloves, safety glasses, and non-slip shoes to prevent electric shock or injury ( ).Tools and Materials: Prepare screwdrivers, wire strippers, multimeter, insulation resistance tester, zip ties, and appropriate wires. Inspect the distribution box and accessories for damage ( ).Choosing the LocationDry and Ventilated: Place the box in a dry area inside the cabinet with good airflow to prevent overheating ( ).Accessibility: Ensure easy access for maintenance and future upgrades ( ).Distance from Hazards: Keep away from water, flammable, or corrosive substances ( ).Height: For residential setups, a typical height is around 1.5 meters from the floor, but adjust based on cabinet design ( ).Mounting the BoxMark and Drill: Align the box with the cabinet surface and mark the mounting points. Drill holes for screws or expansion bolts ( ).Secure the Box: Use screws or brackets to firmly attach the box. Ensure it is level and stable without tilting ( ).Enclosure Rating: Choose a box with an appropriate IP or NEMA rating for protection against dust and moisture, especially if the cabinet is in a humid area ( ).Wiring and ConnectionsCable Entry: Run the input and output cables through knockouts or cable glands. Use proper wire gauge according to the load ( ).Terminal Connections: Connect wires following color codes: phase (black/brown) to phase terminal, neutral (white/blue) to neutral terminal, and ground (green/bare) to the grounding terminal ( ).Neat Arrangement: Organize wires neatly, secure with zip ties, and leave space for heat dissipation ( ).Protection Devices: Install circuit breakers, fuses, or surge protectors for each circuit as required ( ).Testing and Final StepsInsulation Test: Use an insulation resistance tester to check insulation between wires and the box ( ).Circuit Test: Verify each circuit with a multimeter to ensure proper connectivity and no short circuits ( ).Labeling: Clearly label each circuit for easy identification and future maintenance ( ).Close the Cabinet: Secure the faceplate or cabinet door, ensuring the box remains accessible for inspection ( ).MaintenanceSchedule regular inspections to check for loose connections, overheating, or dust accumulation ( ).Keep the cabinet clean and ensure ventilation is not obstructed to maintain long-term reliability ( ). By following these steps, you can safely and efficiently install an electrical distribution box inside a cabinet while ensuring compliance with safety standards and ease of future maintenance.
